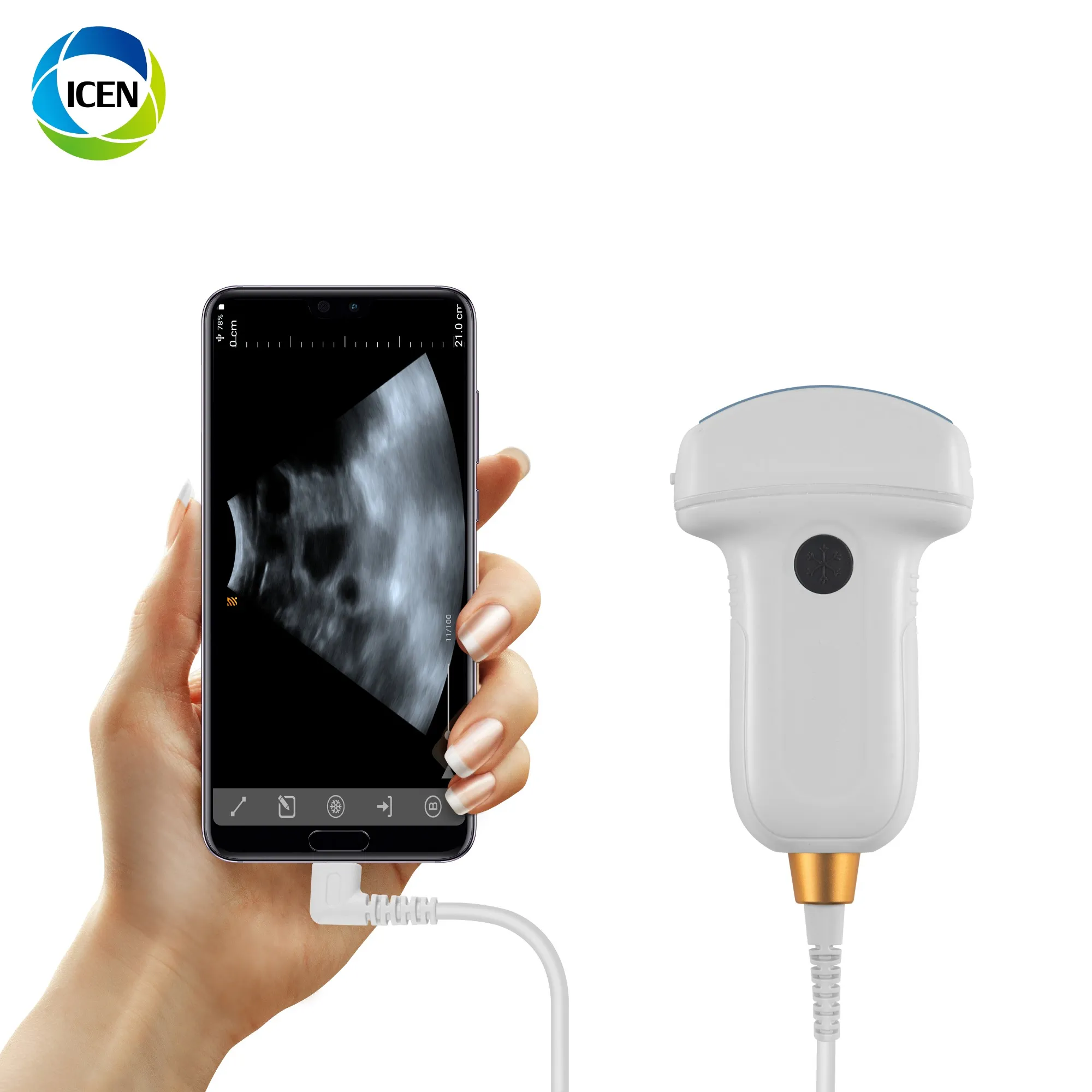

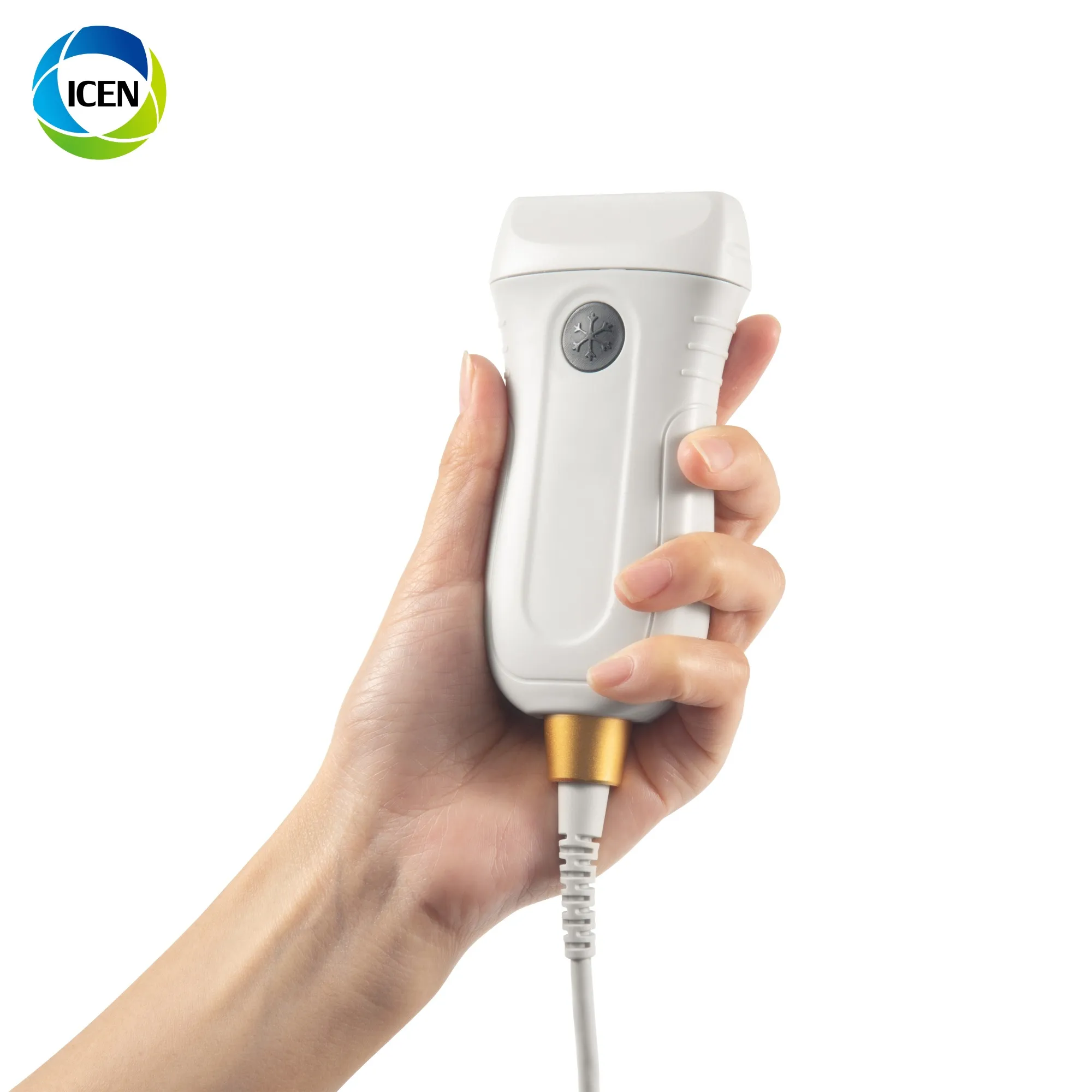

IN-AMX5 Ipad Android wireless ultrasound probe scanner/usb ultrasound probe

Type:Ultrasonic Transducer
Operating system:Android System
Probe elements:128 elements
Frequency:4-11MHz (7.5central)
Imaging mode:B, M, 2B, B/C, B/D, B/C/D, CF+B, PW
System scanning depth:≤70mm
Port:micro USB3.0/2.0
Aperture:38mm
Description
IN-AMX5 Ipad Android wireless ultrasound probe scanner/usb ultrasound probe

Electrical Power

Voltage 5V
Max Power 0.25 W



Physical Specifications

Packing size 210mm×130mm×50mm
Packing weight ~400g



Cine/Image Memory

Cine Memory 200 frame
Capture area Image only / full screen

DICOM Connectivity

DICOM3.0 Storage

Image Storage

Storage Format: JPEG, MP4



Technology

Full field synthetic aperture imaging Tech
Multi-beam formation Tech
Speckle Reduction Tech
Phase-inverse Harmonic Imaging Tech
Duplex Synchronous Display
Directional Power Doppler
Imaging Parameters Preset



General Performance

Digital Beamformer Channels 64 channels
Beam-former Frequency Range 1~18 MHz



Imaging Performance

Startup Time (Max) Avg. < 10 seconds
Preset Switching Time Avg. < 1 second
Storage Time (Image to Disk) Avg. < 1 second



Transducers

Probe Convex Array Probe Linear Array Probe
Frequency Central 3.5 MHz
(2.0MHZ to 5.0MHZ)
Central 7.5 MHz
(5.0MHZ to 10.0MHZ)
Pitch 0.78mm 0. 5mm
Radius 60mm N/A
Elements 80 80



User Interface

Full touch-screen-based operating principles



IMAGING MODES

B, M, 2B, B/C, B/D, B/C/D, CF+B, PW



B-Mode

Maps 8
Gain 0~100
TGC 6 Sliders
Dynamic Range 45~80dB
Depth Max. 24cm
Chroma 0~7
Grayscale Levels 256
Frame Rate Max.15 Hz
Persistence/ Frame Average 1~4
Top/Bottom/Left/Right  Yes
Speckle Reduction Yes
Harmonic imaging Yes (linear probe)



Color Mode

Gain 0~100
Color Maps 1~12
Doppler Steer Angles 7 Steps
Wall Filter 1~4
Persistence/Frame Average 1~5



PW Mode

Gain -20~20
D Linear Velocity L/M/H
Doppler Steer Angles 5 Steps
Wall Filtering 1~3
Correction Angle 80°/-80°
Max PRF 10kHz
Baseline Adjustment -3~3

MEASUREMENTS SPECIFICATIONS

Analysis Packages
Basic, Obstetrics, Urology



Basic Measurement

B-mode Distance, Perimeter and Area (ellipse or track-based method), Volume
M-mode Heart Rate, Time, Distance, Speed
PW-mode Heart Rate, Velocity, S/D, PI, RI





  • How to buy your products ?Do you have distributor in our country?

You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment  byT/T, contact the shipping company to delivery the goods to your country.

  • What is the warranty?

The free warranty is one year from the day of Commissioning qualified.

  • Can we visit your country ?

Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

  • How long is the validity of quotation?

Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .

  • Do you have the CE certificate ?

Yes, most of our products have the CE certificate.
